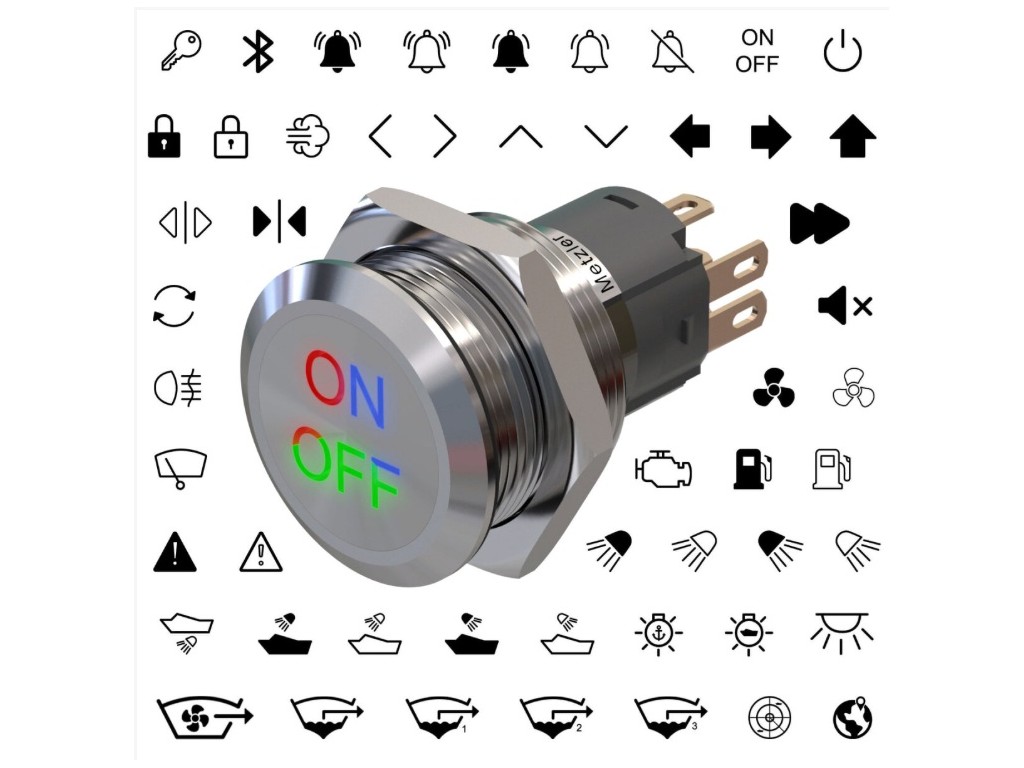

LED RGB Push Button Latching On-Off 12V 3A

Switch capacity: 3A @ 250V AC
Switching action: Latching
Function: NC, NO, Toggle
Contact paths: SPDT (Single Pole Double Throw)
Life duration: At least 100.000 electrical operations, at least 1.000.000 mechnical operations
Illumination: LED illuminated symbol RGB, 6-24V AC/DC > 20mA, at least 40.000 h
Material: Stainless steel V4A (Push button), Stainless steel V2A (Body)
Installation diameter:19mm
Installation depth: 39mm
Head shape: Flat
Standards/Certifications: IP67, IK10, RoHS, REACH, CE, IEC 60947-5-1:2016, IEC 60947-5-5:2016, EN 61000-6-4-2007+A1:2011, EN 61000-6-2:2005, EN 61000-6-1:2007, EN 6100-6-3:2007+A1:2011, EN 6100-3-2:2014, EN 6100-3-3:2013, 2014/35/EU, 2014/30/EU, UL 508
