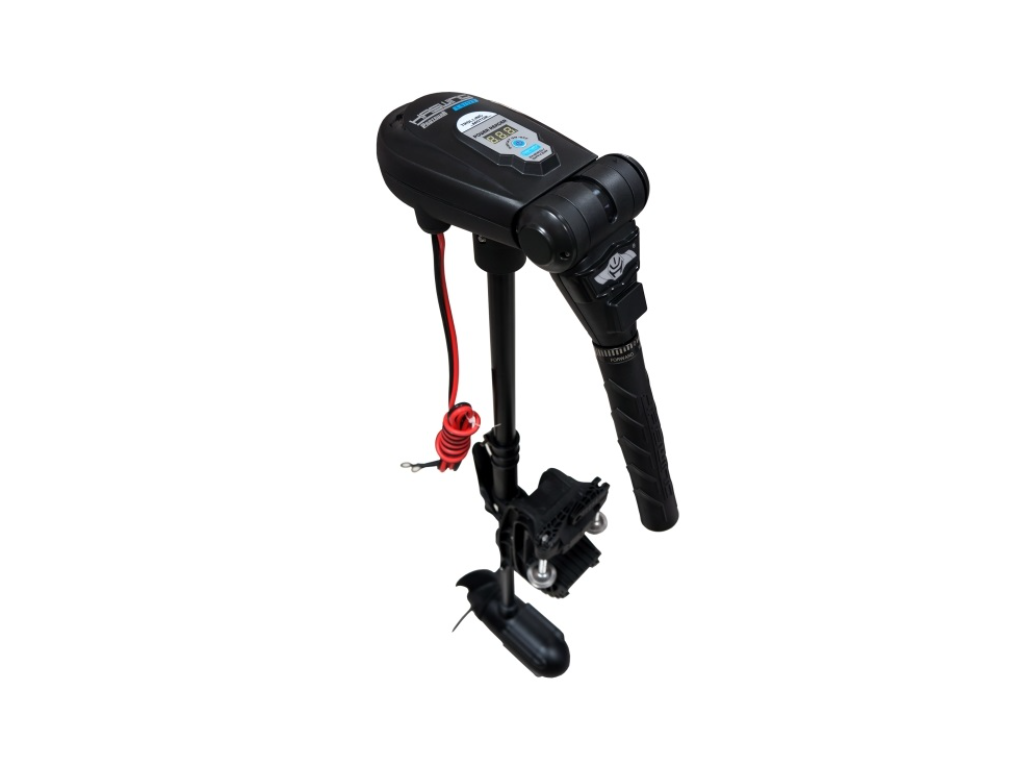

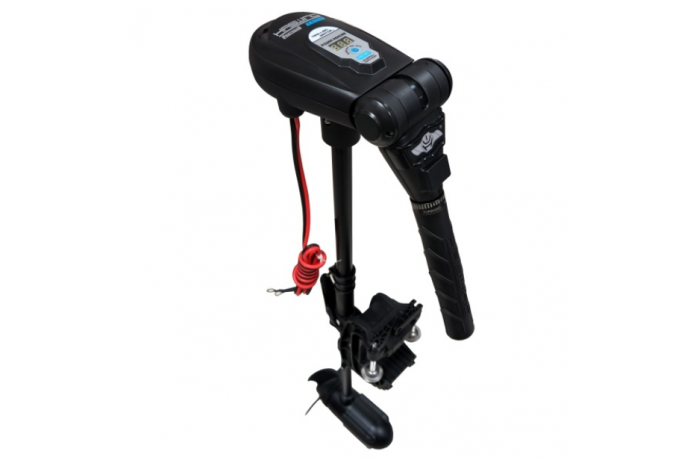

Haswing Protruar 1.0 65lbs LED Electric Boat Motor

Haswing Protruar 1.0 LED – a 12 V brushless transom trolling motor (65 lbs thrust, 600 W) featuring a digital LED voltage indicator, stepless speed control (Maximizer), and a 180° foldable telescopic tiller.

Theoretical recommendation according to the manufacturer - for boats up to 6 m long 700 kg. "Boatshop" recommends use in typical boats up to 4 meters in size.

It is recommended to use 12V batteries with a fully charged voltage of max 14.8V

Part No: 50744 BNR

Ref.	Price €	Avail.	Buy
11000284	~~419.00~~ 399.00	In stock	Sum.:
Total: 0

Specification

Data sheet

Voltage rated

12V

Power Hp

1 HP

Motor

Brushless, Direct Drive, Maintenance Free

Motor weight, kg

Voltage Min / Max

11V / 14,8V

Max RPM

Max thrust

65 lbs

Current A Nominal / Max

45 / 50

Gears

0-100% to both sides

Power W nominal / max

540 / 600

Battery level indicator

Yes

Saving function (Maximizer)

Yes

Extendable handle

Yes

Folding handle

Yes

Shaft length

92cm

Product group

Transom-mount

Manufacturer

HASWING

Warranty

24 months

Motor series

Protruar

Specific References

Description

The Haswing Protruar 1.0 LED is a modern 12 V electric trolling motor, designed for both fresh and saltwater applications. Perfect for fishing boats, inflatables, or small motorboats.

Key Features:

Brushless technology – quiet operation (~50 dB), high efficiency, extended service life.

LED voltmeter – real-time battery monitoring for safe and efficient usage.

Maximizer speed control – stepless adjustment, saving up to 5× more energy compared to standard mechanical switching.

Telescopic tiller (35 cm) with 180° adjustment, foldable for easy transport and ergonomic handling.

Durable aluminum shaft (92 cm) – corrosion-resistant.

Convenient tilt system for easy lifting and lowering of the motor in water.

65 lbs thrust (600 W) – powerful and reliable propulsion for different watercraft.

Supplied with a 3-blade propeller, mounting kit, and detailed user manual.

Compact, durable, and highly efficient – the Protruar 1.0 LED is an excellent choice for anglers and recreational boaters.

Specification	Value
Nominal voltage	12 V
Operating voltage range	11 – 14.8 V
Power (nominal / max)	540 W / 600 W
Equivalent power	~1 HP
Max thrust	65 lbs
Max RPM	1250 rpm
Current draw (nom./max)	45 A / 50 A
Speed control	Stepless, 0–100% forward & reverse
Shaft length	92 cm (aluminum)
Motor weight	6.7 kg
Handle	Telescopic (35 cm), foldable, 180° tilt
Battery indicator	LED digital
Maximizer (economy mode)	Yes
Propeller	3-blade
Warranty	24 months
Manufacturer	Haswing
Model series	Protruar

Quality - the motor has passed tests not only by the manufacturer, but also practical tests in real conditions - fishermen around the world have been using this motor since 2018. The brushless motors themselves are said to be "eternal", except for the bearings and seal, there is nothing to break. Motor start is gentle, there is protection against overload, temperature. The propeller is mechanically protected by a fin at the bottom.

Available for 24 months. warranty, and in the event of a breakdown, we will always offer details, services and practical advice.

Price - this motor is 100% worth this amount of money, it is a big step forward in the segment of electric boat motors, you will be able to enjoy a long, easy and quality rest on the water.

Nature will thank you. You will swim quietly without polluting the water and disturbing anything around, isn’t that what we all look for in nature?

No restrictions - sail wherever possible, at any time, without waiting for navigation to start or other restrictions to end, without boat registration procedures and associated costs!

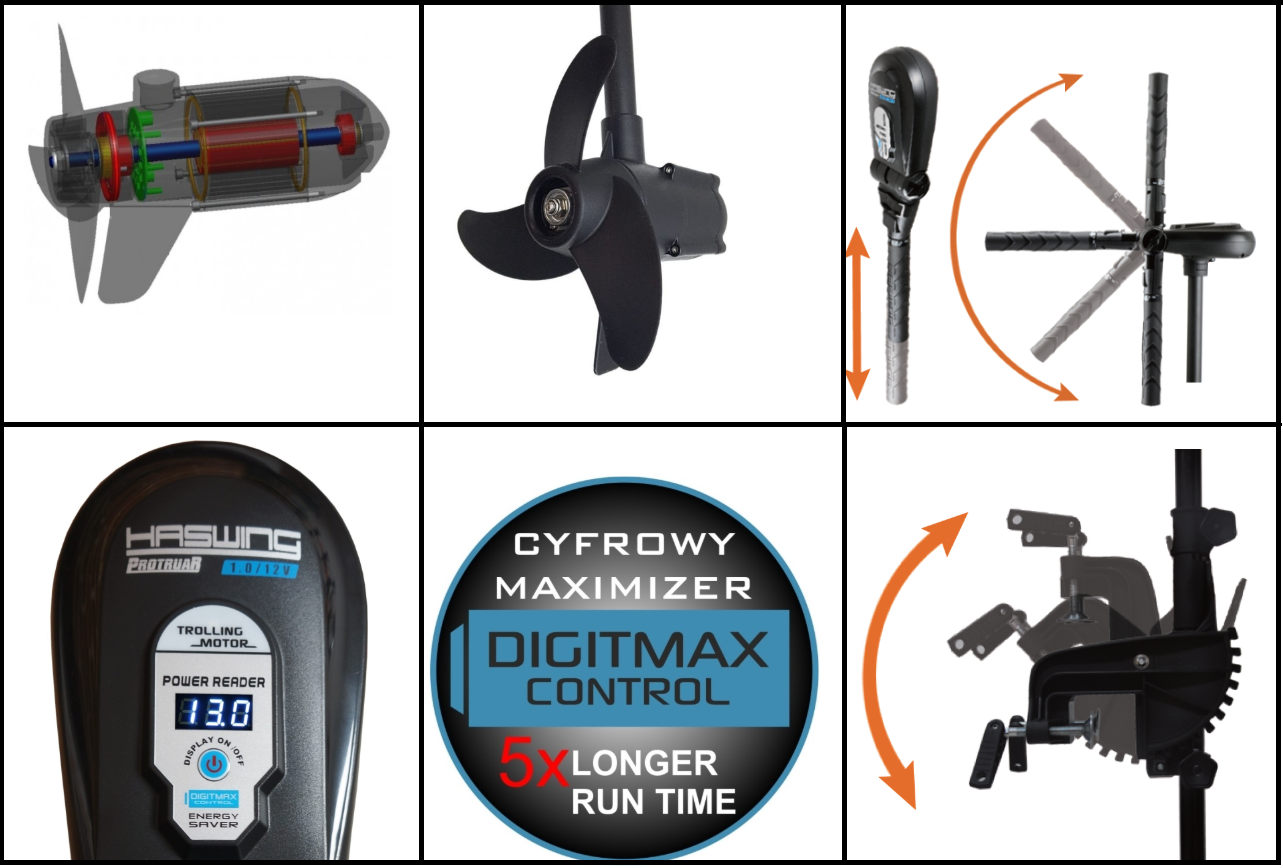

The latest technology - pictured Haswing Protruar 1.0 three-phase brushless motor
