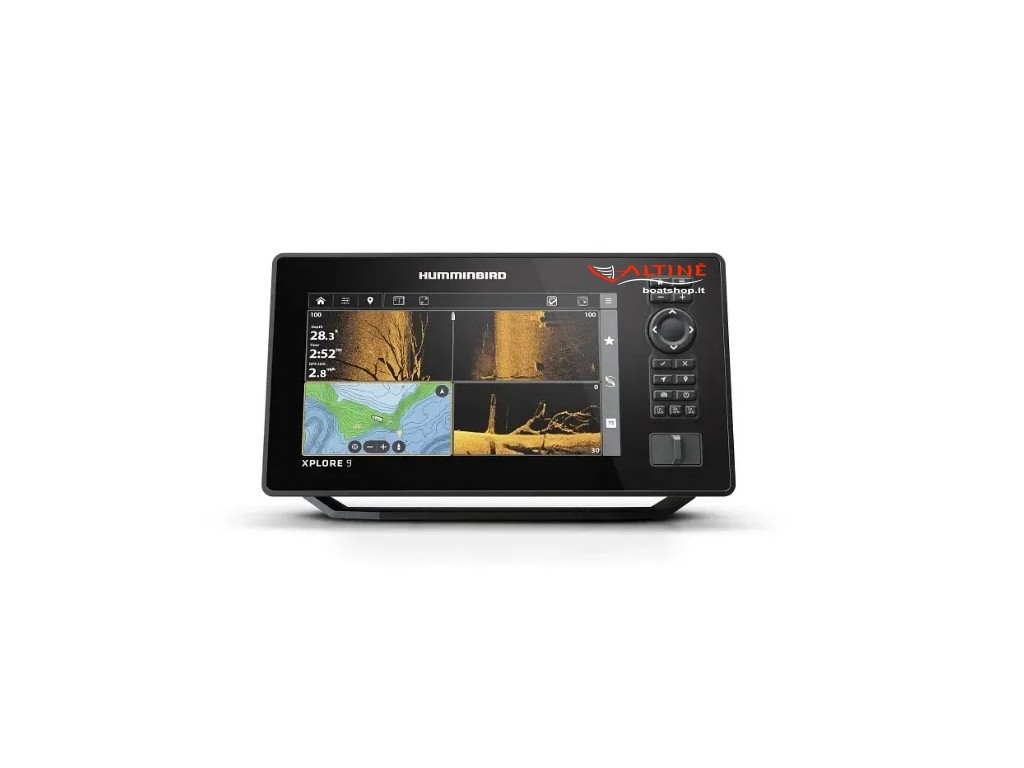

Humminbird XPLORE 9 CMSI+ – advanced 9" Full HD color fish finder and navigation system featuring integrated GPS, MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar.
Ref. | Price € | Avail. | Buy |
---|---|---|---|
— |
1,795.00
|
||
Total: 0 |
Description
• 9″ HD display with Cross Touch® interface – high-resolution imagery with intuitive control via touchscreen or buttons
• MEGA Side Imaging+ – side-scanning sonar up to 60 m (200 ft) on both sides of the boat, delivering 20% more detail than standard MEGA
• MEGA Down Imaging+ – downward-facing sonar view up to 60 m (200 ft) deep with up to 20% improved clarity
• Dual Spectrum CHIRP sonar – two frequency modes: Wide and Narrow, for precise fish and structure detection beneath the water
• Built-in GPS and Humminbird Basemap – covers over 10,000 lakes and coastal maps
• Supports LakeMaster® & CoastMaster™ mapping cards – for detailed inland and coastal charts in the US and Canada
• One Boat Network® integration – connects with Minn Kota motors, autopilot, and AIS | Wi-Fi | Bluetooth | NMEA2000 support
• AutoChart Live – real-time depth contour mapping with 8 hours of internal recording capacity
Parameter | Value |
---|---|
Display size | 9 inches (Full HD 1280 × 720 px) |
Display type | Cross Touch® (touchscreen and button control) |
Sonar types | MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP |
Scanning range | Side up to 60 m (200 ft), down up to 60 m (200 ft) |
GPS | Built-in high-precision GPS |
Maps | Humminbird Basemap, supports LakeMaster® and CoastMaster™ |
Connectivity | Wi-Fi, Bluetooth, Ethernet, NMEA2000 |
Network compatibility | One-Boat Network® with Minn Kota, Talon, etc. |
AutoChart Live | Yes, with up to 8 hours of internal recording |
Memory card slots | 2 × microSD card slots |
Power supply | 10.8 – 20 V DC |
Weight | ~1.94 kg |
Operating temperature | -20 °C to +60 °C |
Protection rating | IPX7 (water and splash resistant) |
Warranty | 2 years |
