Humminbird MEGA Live 2 forward‑facing sonar

The Humminbird MEGA Live 2 forward‑facing sonar delivers real‑time imaging of fish, bait, and structure ahead of your boat with no delay. Mounts to a trolling motor shaft and offers three view modes (Forward, Down, Landscape), 15 color palettes, enhanced clarity, and stable, detail-rich target separation.

Ref.	Price €	Avail.	Buy
—	~~1,995.00~~ 1,795.00		Sum.:
Total: 0

Description

Key Features:

• Three viewing modes: Forward, Down, and Landscape – allowing comprehensive underwater monitoring

• 15 optimized color palettes (e.g., Citrus Shad, Doppler) – enhance visibility of bait and structure in varying conditions

• TargetBoost™ technology – increases contrast, bait definition, and accuracy in open water

• 45° x 120° viewing angle (20° side-to-side × 120° forward) – effective up to ~45 m depth and ~37 m distance ahead (~120 ft)

• Compatible with Humminbird control units: APEX™, SOLIX® G3, XPLORE (with MEGA Side/Down Imaging support)

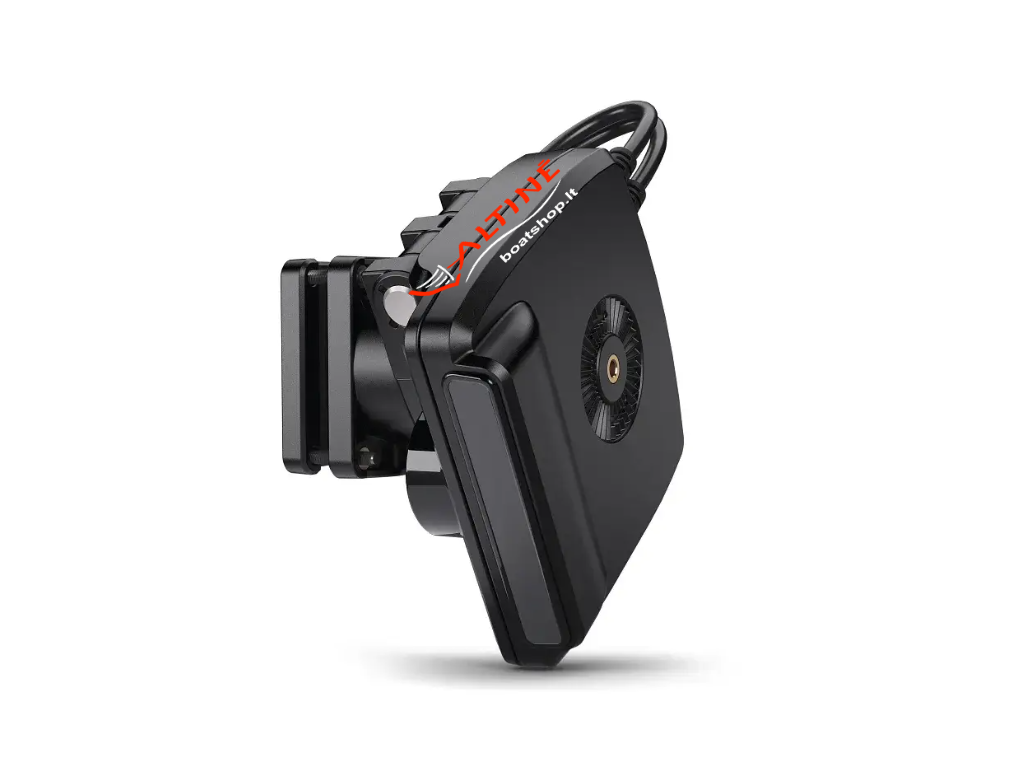

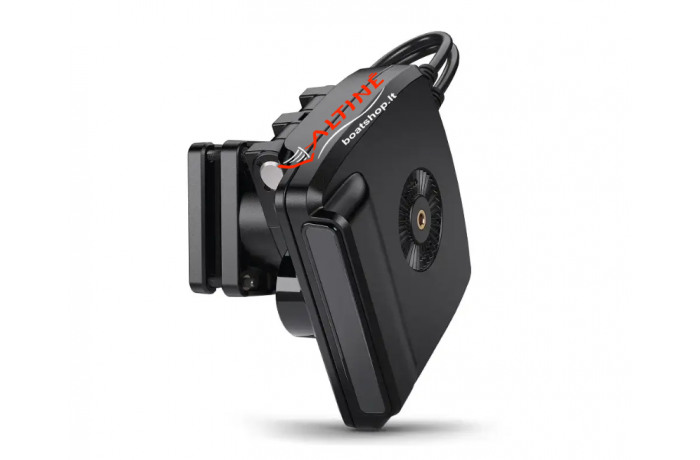

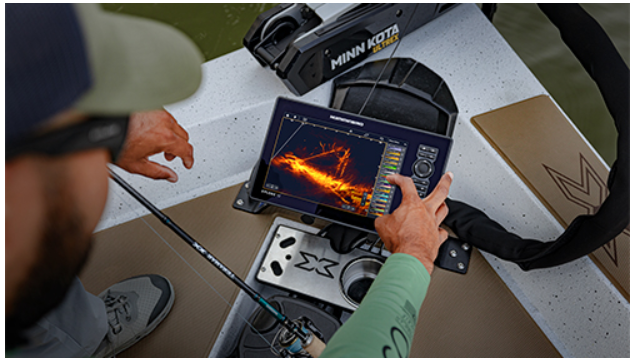

• Mountable on trolling motor shaft (e.g., Minn Kota Ultrex / Quest) or transom mounts

• Enhanced stability and more precise beam angle control (adjustable in 7.5° increments) with the new mount design

Technical Specifications:

Parameter	Value
Sonar Type	Real-time (live view without delay)
View Modes	Forward, Down, Landscape
Beam Angle	20° (horizontal) × 120° (vertical)
Max Range	~37 m (120 ft)
Compatibility	Humminbird APEX™, SOLIX® G3, XPLORE
Operating Voltage	10 – 20 V DC
Power Consumption	~930 mA (up to 2.5 A at startup)
Operating Temperature	−4 °C to +70 °C
Waterproof Rating	IPX8 (fully waterproof)
Warranty	2 years
