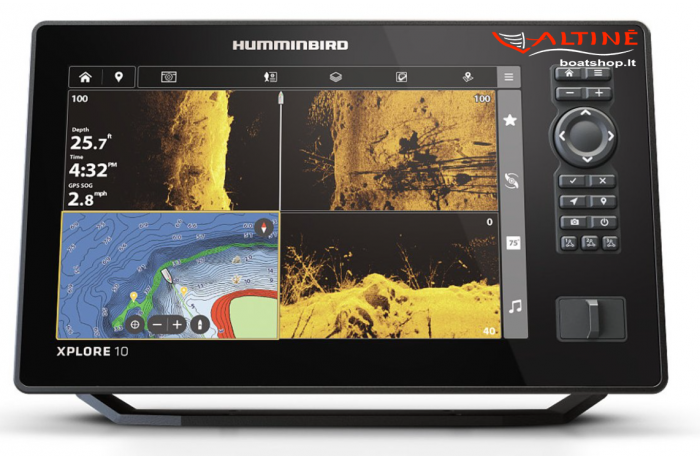

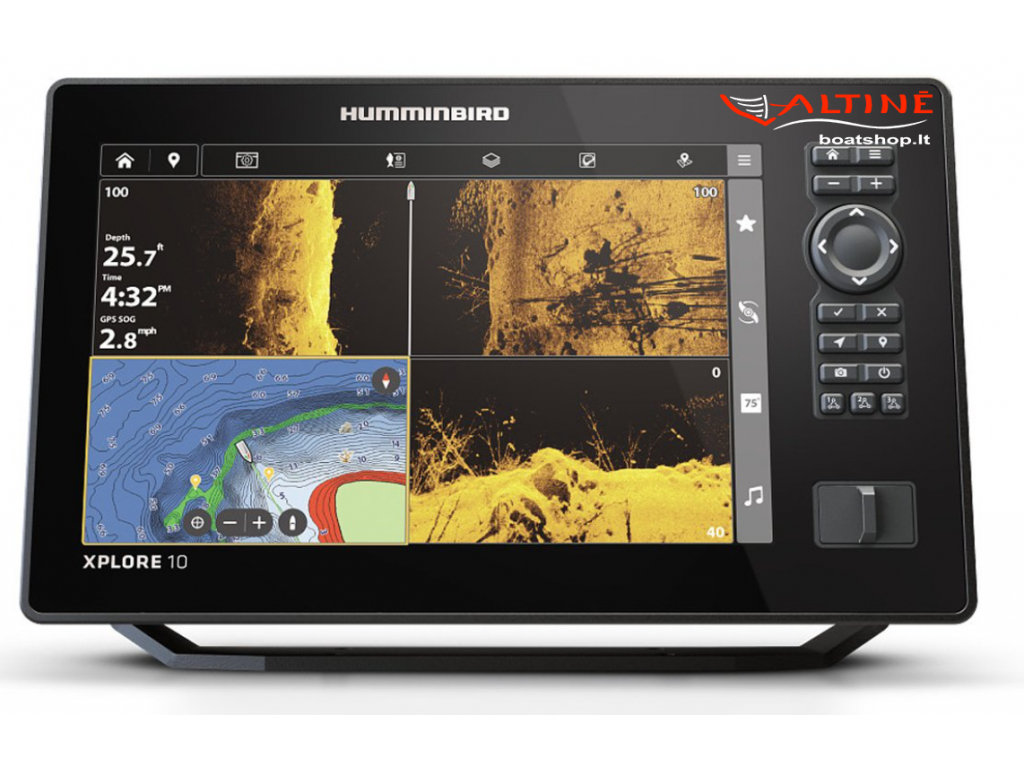

Humminbird XPLORE 10 CMSI+ is a next-generation fish finder featuring a 10.1-inch Full HD display, advanced sonar technologies, and full compatibility with the One-Boat Network®. Designed for those who seek maximum control over fish finding, navigation, and onboard system integration — all in one powerful device.
Ref. | Price € | Avail. | Buy |
---|---|---|---|
— |
2,495.00
|
||
Total: 0 |
Description
• Large and clear 10.1" Cross Touch® display – Operable via touch or buttons, even with wet hands or gloves
• MEGA Imaging+ sonars – Ultra-high-resolution imaging from the sides (Side Imaging) and below (Down Imaging)
• Dual Spectrum CHIRP – More precise bottom contour and fish detection
• Built-in GPS and Humminbird BaseMap – Includes maps of over 10,000 lakes and coastal areas
• LakeMaster® and CoastMaster™ support – Enables even more detailed maps (sold separately)
• AutoChart Live – Real-time mapping while navigating
• One-Boat Network® – Seamless integration with Minn Kota motors, Talon anchor systems, and more
• Connections: Wi-Fi, Bluetooth, Ethernet, NMEA 2000 – Maximum compatibility with other devices
• Waterproof (IPX7) – Reliable operation in all weather conditions
Parameter | Value |
---|---|
Display size | 10.1 inches (1280 × 800 px Full HD) |
Display type | Cross Touch® (touch and button control) |
Backlight | LED backlight |
Sonar types | MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP |
CHIRP frequency modes | Wide (75–155 kHz), Narrow (180–240 kHz) |
Scanning range | Side up to 60 m, down up to 60 m |
GPS receiver | Built-in, 10 Hz accuracy |
Maps | Humminbird BaseMap + support for LakeMaster®, CoastMaster™ |
AutoChart Live | Yes, 8 hours internal memory (expandable with SD card) |
Memory card slots | 2 × microSD (for maps, recording, updates) |
Connectivity | Wi-Fi, Bluetooth, Ethernet, NMEA 2000 |
Network compatibility | One-Boat Network® (Minn Kota, Talon, Cannon, MEGA Live, AIS, etc.) |
Power supply voltage | 10.8 – 20 V DC |
Power consumption | ~2.4 A (typical usage) |
Fuse | 5 A |
Operating temperature | -20 °C to +60 °C |
Storage temperature | -30 °C to +70 °C |
Protection rating | IPX7 (resistant to rain, splashes, submersion up to 1 m) |
Weight | ~2.15 kg |
Dimensions (W × H × D) | ~29 × 18 × 9 cm (without mount) |
Warranty | 2 years (manufacturer) |
